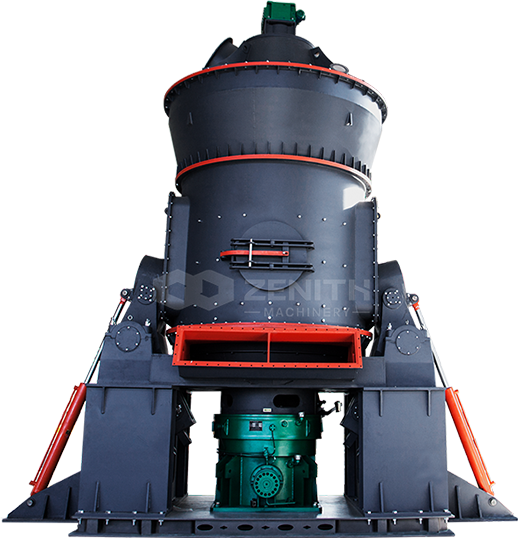

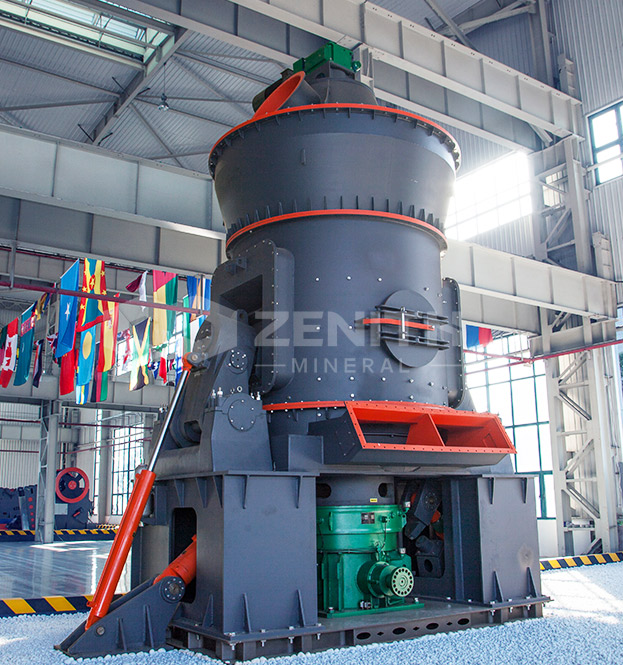

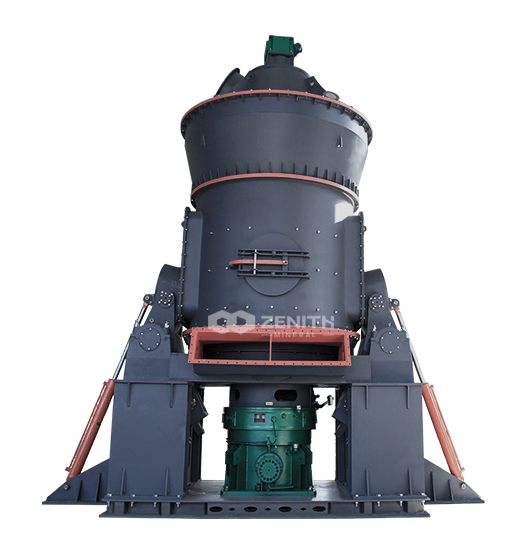

LM Vertical Grinding Mill
Input Size: 0-50mm
Capacity: 3-170T/H
LM series vertical roller mills are a excellent grinding equipment, which have the capacity of 24hours constant running. Because of this automatic operation, this VRMs are popular in the condition, which needs easy monitor, large capaity, constant running, stable product quality, like large mineral powder plant, cement plant, GGBS powder plant, coal grinding plant, etc.
LM Vertical Grinding Mill can effectively control product size, chemical composition and iron content, and ensure the purity and whiteness of finished materials.
LM Vertical Grinding Mill adopts a compact integrated design, which covers an area of about 50% of the ball mill system, and can be arranged in the open air with less comprehensive investment.
LM Vertical Grinding Mill is equipped with an automatic control system, which can realize free switching between remote control and local control. It is easy to operate and has low labor cost.
LM Vertical Grinding Mill is sealed and operates under negative pressure, characterized by no dust spillover, small vibration, low noise, and more eco-friendly production.
We offer customized EPC turnkey grinding engineering services, providing end-to-end guidance—from initial project initiation and process design to final commissioning—supported by a professional design institute team, thereby meeting the construction requirements for integrated sand and powder production lines.
Prioritize the investigation of the following three core causes: first, a wide variation in feed particle size combined with the presence of metallic foreign particles, which leads to instability of the material bed; second, a mismatch between the hydraulic loading pressure and the hardness of the material; third, an imbalance in the system's air flow rate, resulting in an excessively thin or thick material bed; these issues can be rapidly mitigated by adjusting the feeding rate, pressure, and air flow parameters accordingly.
Utilizing the material-bed extrusion crushing principle, this system achieves a grinding efficiency 1.65 times that of a ball mill, reduces power consumption by approximately 30%, and features high equipment integration—eliminating the need for multiple auxiliary units—thereby significantly lowering overall operational energy consumption.
It is widely used in applications such as the preparation of specialized aggregates for dry-mixed mortar, large-scale production of high-quality sand and gravel, pre-milling of ores in metallurgy and mining operations, preparation of pulverized coal for blast furnace injection, and resource recovery from industrial waste residues, spanning multiple industries including building materials, metallurgy, and chemical engineering.
The main motor drives the grinding disc to rotate, causing the material to enter the grinding roller compression zone under the action of centrifugal force. The material undergoes grinding via inter-particle crushing within the material bed; the crushed material is then graded by external classification equipment, with oversized particles recirculated for further grinding, ultimately yielding qualified sand powder.
It is suitable for processing brittle materials with a Mohs hardness below 7, compressive strength below 260 MPa, and non-flammable, non-explosive, and non-corrosive properties; it covers dozens of common ores, including limestone, quartz, granite, coal gangue, dolomite, and others.
