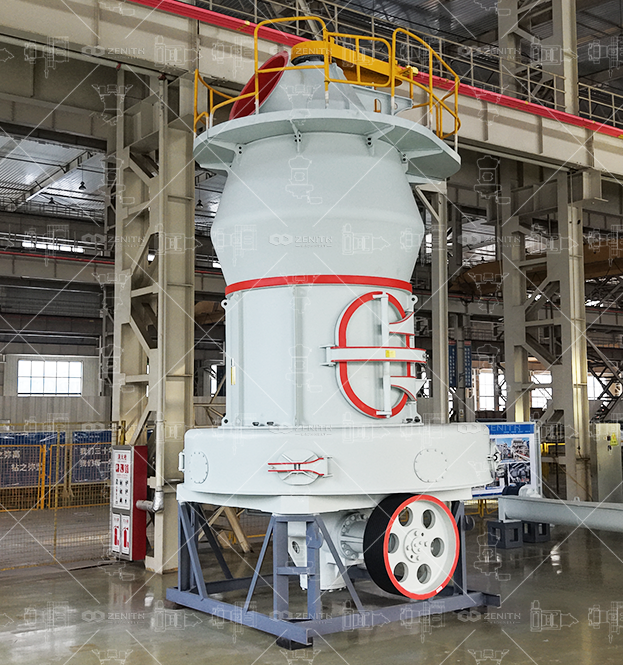

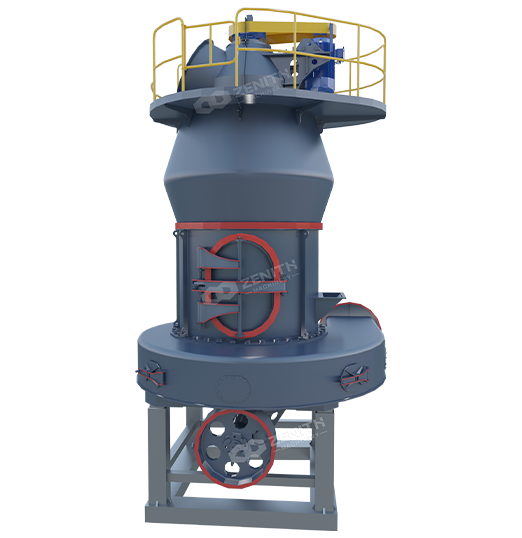

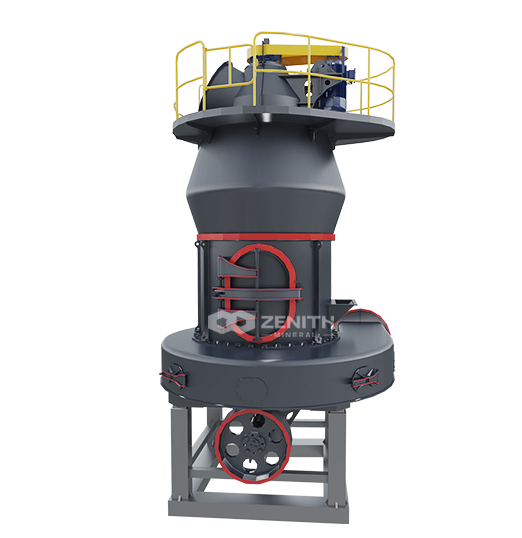

MTW6X Trapezium Mill
Input Size: 35-50mm
Capacity: 6-55T/H
MTW 6X Fully Thin Oil Lubricated Intelligent European Trapezium Mill, built on the proven technical platform of Zenith's Generation V MTW European Trapezium Mill, focuses on core market demands with increased R&D investment. Adhering to the design philosophy of "Higher Intelligence, Greater Energy Efficiency, Enhanced Productivity, Superior Environmental Performance, and Improved Reliability", this high-performance grinding equipment incorporates multiple structural optimizations and technological innovations, and deeply integrates the full oil-lubrication system with IoT-based intelligent control technology.
It precisely meets the urgent needs of powder processing enterprises for energy conservation, consumption reduction, quality improvement and efficiency enhancement, and can help build a modern powder production line characterized by large-scale, intensive, green, intelligent, safe and high-quality operation.
Inheriting the integrated bevel gear drive technology of the MTW European trapezium mill, it features a simplified transmission chain and a precisely controllable transmission ratio, ensuring stable power output.
Both the main unit and the roller system are fully equipped with an oil lubrication solution, enabling lubrication maintenance without equipment shutdown and significantly reducing equipment downtime.
The classifier adopts an all-new structural design, with optimized sealing performance and air flow velocity, effectively improving the efficiency and precision of powder classification.
The system is fitted with a new high-performance fan, which increases pneumatic energy efficiency by 15% and achieves 8%-10% power savings compared with traditional fans.

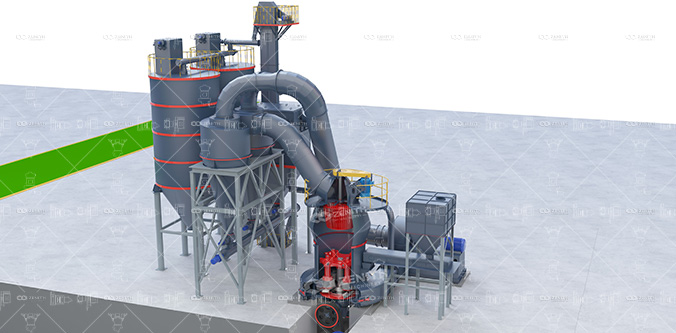

We offer customized EPC turnkey grinding engineering services, providing end-to-end guidance—from initial project initiation and process design to final commissioning—supported by a professional design institute team, thereby meeting the construction requirements for integrated sand and powder production lines.
Prioritize the investigation of the following three core causes: first, a wide variation in feed particle size combined with the presence of metallic foreign particles, which leads to instability of the material bed; second, a mismatch between the hydraulic loading pressure and the hardness of the material; third, an imbalance in the system's air flow rate, resulting in an excessively thin or thick material bed; these issues can be rapidly mitigated by adjusting the feeding rate, pressure, and air flow parameters accordingly.
Utilizing the material-bed extrusion crushing principle, this system achieves a grinding efficiency 1.65 times that of a ball mill, reduces power consumption by approximately 30%, and features high equipment integration—eliminating the need for multiple auxiliary units—thereby significantly lowering overall operational energy consumption.
It is widely used in applications such as the preparation of specialized aggregates for dry-mixed mortar, large-scale production of high-quality sand and gravel, pre-milling of ores in metallurgy and mining operations, preparation of pulverized coal for blast furnace injection, and resource recovery from industrial waste residues, spanning multiple industries including building materials, metallurgy, and chemical engineering.
The main motor drives the grinding disc to rotate, causing the material to enter the grinding roller compression zone under the action of centrifugal force. The material undergoes grinding via inter-particle crushing within the material bed; the crushed material is then graded by external classification equipment, with oversized particles recirculated for further grinding, ultimately yielding qualified sand powder.
It is suitable for processing brittle materials with a Mohs hardness below 7, compressive strength below 260 MPa, and non-flammable, non-explosive, and non-corrosive properties; it covers dozens of common ores, including limestone, quartz, granite, coal gangue, dolomite, and others.
Fill your requirements here, and we'll send the custmized solution and quotation to you by the reserved contact information.
