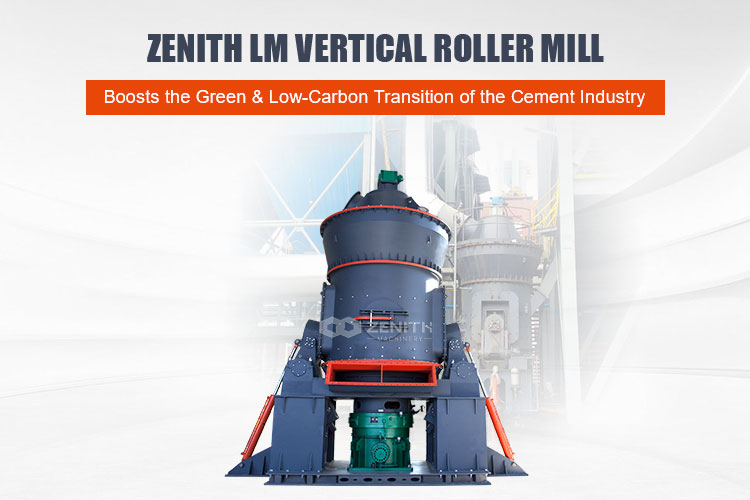

ZENITH LM Vertical Roller Mill, Boosts Green and Low-Carbon Transition of the Cement Industry

Facing the multiple demands of the global cement market for energy conservation, carbon reduction, quality control and flexible production, ZENITH continues to focus on complete powder system engineering. Drawing on decades of R&D of grinding equipment and experience in overseas project execution, ZENITH has launched the integrated clinker grinding production line solution centered on the LM vertical roller mill. It delivers complete equipment, customized processes and full-lifecycle engineering services for new standalone grinding stations, revamping of existing ball mill systems, and co-grinding projects with multiple admixtures.

The cement industry is shifting from a sole pursuit of production capacity scale toward high quality development featuring refined production, low carbon operation and flexible proportioning. Clinker is hard and highly abrasive; the grinding process is not only the main energy consuming link of the whole plant, but also a critical procedure that determines cement particle size distribution, water demand and strength development. Many grinding stations commonly suffer from high power consumption, unstable finished product indicators, frequent replacement of wear parts, cumbersome plant layout and poor adaptability to admixture blending. ZENITH LM vertical roller mill clinker grinding system is a complete solution with targeted structural and process optimizations addressing these industry pain points.

Adopting the mature material-bed compression comminution principle, LM vertical roller mill integrates four major functions: drying, grinding, dynamic classification and pneumatic conveying. Clinker is fed steadily into the mill center through an air-locking feeder, spreads outward along the rotating mill table, and forms a stable material bed under constant hydraulic pressure from the grinding rollers. Efficient comminution is achieved by inter-particle compression. The crushed material is carried by upward airflow into the variable-frequency dynamic classifier at the top, where qualified fine powder is accurately separated while coarse particles fall back automatically to the mill table for re-grinding. Finished powder is collected by high efficiency dust collectors and sent to silos. The entire air circuit features a compact layout and can fully utilize waste hot air from kiln exhaust, enabling co-grinding of clinker together with various admixtures such as slag, fly ash and limestone to meet diversified cement proportioning requirements.

Six Core Highlights of ZENITH LM Vertical Roller Mill Clinker Grinding System

1. Outstanding Energy Efficiency of Material-bed Comminution, Controllable Energy Consumption per Ton of Powder

Unlike the impact comminution principle of ball mills, LM vertical roller mill works via inter-particle compression with higher energy conversion efficiency. At the same specific surface area, the system’s specific power consumption is substantially better than that of traditional ball mill circuits. Combined with waste-heat drying technology, heat source energy consumption is further reduced. It effectively cuts production costs during long-term operation and helps enterprises meet carbon emission targets.

2. Controllable Particle Morphology, Excellent Cement Performance

The variable-frequency classification system enables rapid on-line adjustment of fineness and particle distribution to avoid over grinding. Finished particles feature good sphericity and rational gradation range. The cement has stable water demand with uniform development of 3d and 28d strength, meeting material standards for high-end building materials such as ready-mix concrete and precast components.

3. Specially Reinforced Wear resistant System, Easy Maintenance and High Availability

Tailored for the highly abrasive working condition of clinker, it adopts high-toughness wear-resistant alloy roller tires and mill table liners. A standard roller limiting structure prevents direct collision between rollers and the table to reduce vibration risks. Maintenance oil cylinders can flip the rocker arms for quick on-site disassembly and replacement of roller tires, greatly shortening maintenance downtime and ensuring continuous production.

4. Multi-material Compatibility for Flexible Co-grinding

A single LM vertical roller mill system can switch between multiple formulas: pure clinker, clinker + slag, clinker + fly ash, clinker + limestone, etc., without extensive production line modification. It allows enterprises to flexibly adjust admixture ratios according to market conditions, enrich product diversity and strengthen market competitiveness.

5. Compact and Intensive System, Controllable Capital Investment

One single machine integrates multiple functional units with fewer auxiliary units. Its footprint is only about half that of a traditional ball mill system, and outdoor installation is available. Lower foundation load reduces civil engineering work and construction cycle, making it especially suitable for revamping projects with limited space and medium & small-scale grinding stations.

6. Negative-pressure Enclosed Dust Removal + Digital Central Control: Safe, Eco-friendly and Easy to Manage

The whole system operates under negative pressure to prevent dust leakage. Matched with low-resistance high-efficiency dust collectors, it consistently satisfies strict local emission standards. Equipped with a DCS intelligent central control platform, it collects real time data including pressure, temperature, vibration, fineness and output. Local control and remote monitoring are supported to cut on site labor and realize standardized, digital production management.

Focused on the long-term goals of green transition, intelligent upgrading and flexible production in the cement industry, ZENITH keeps upgrading the pressurization system, wear-resistant materials and intelligent control modules of the LM vertical roller mill. We continuously optimize the co-grinding process for clinker and deliver cost-effective and reliable complete grinding solutions to building materials customers worldwide, working together to build a low carbon and sustainable cement industrial ecosystem.
